Sim Rhino Products
Thermal Imaging Cameras
High-resolution, low-power thermal imagers designed for industrial inspection, diagnostics, AI integration, robotics, and embedded monitoring systems. Measure accurately from -20 °C to 600 °C with exceptional sensitivity.
Highly Integrable

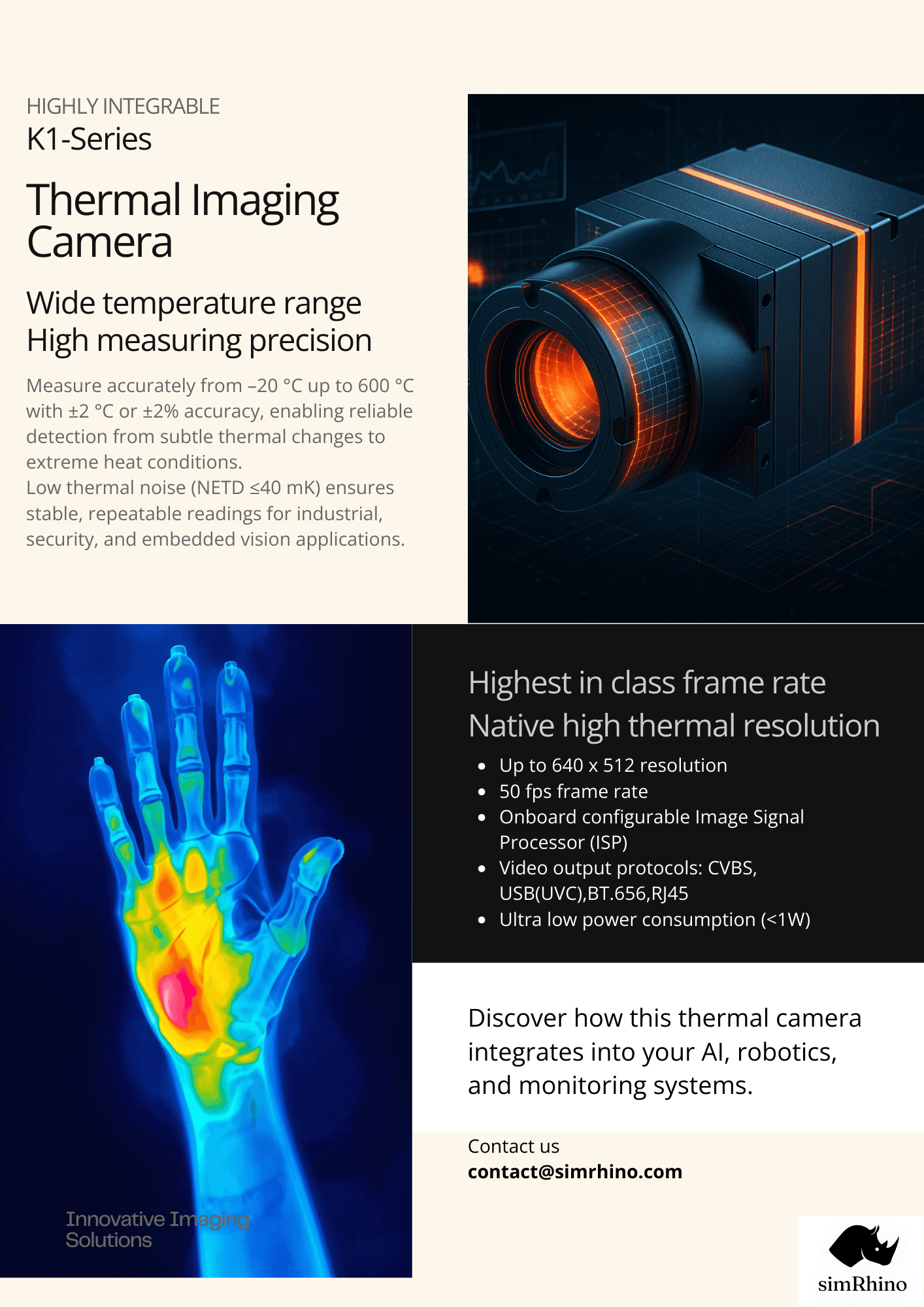

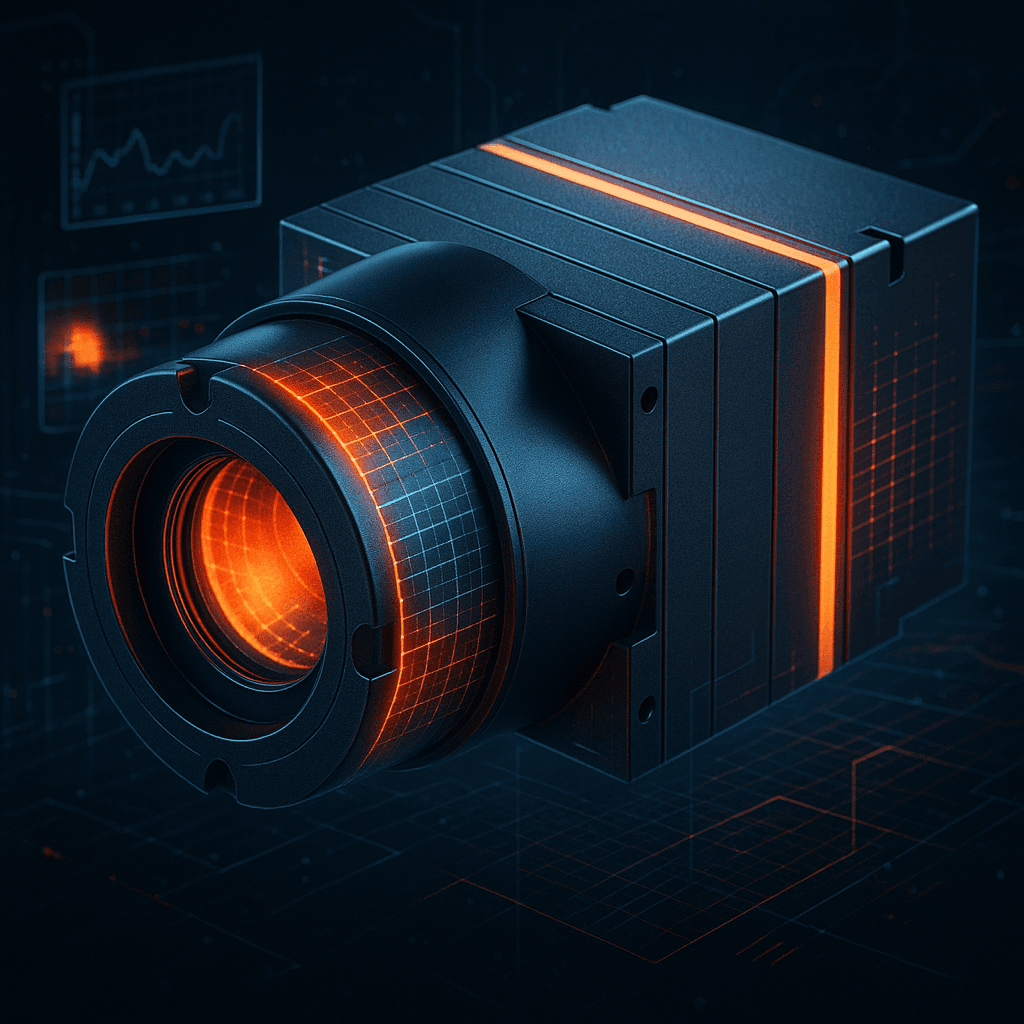

K1-Series Thermal Imaging Camera
Wide temperature range, high measuring precision. Measure accurately from -20 °C up to 600 °C with ±2 °C or ±2% accuracy. Low thermal noise (NETD ≤40 mK) ensures stable, repeatable readings for industrial, security, and embedded vision applications.
- Highest in class frame rate (50 fps)
- Native high thermal resolution (640 x 512)
- Onboard configurable Image Signal Processor (ISP)
- Multiple video output protocols: CVBS, USB (UVC), BT.656, RJ45
- Ultra low power consumption (<1W)
- Integrates into AI, robotics, and monitoring systems
K1-Series Specifications
| Resolution | Up to 640 x 512 |
| Frame Rate | 50 fps |
| Temperature Range | -20°C to 600°C |
| Accuracy | ±2°C or ±2% |
| NETD | ≤40 mK |
| Power | <1W |
| Video Output | CVBS, USB (UVC), BT.656, RJ45 |
| ISP | Onboard configurable |
Built for Integration
Our thermal cameras are designed to integrate seamlessly into your existing systems. Whether you're building AI-powered inspection tools, robotics platforms, or industrial monitoring solutions, our cameras provide the thermal data you need with minimal integration effort.
AI & Machine Learning
Feed thermal data directly into your ML pipelines
Robotics
Add thermal vision to autonomous systems
Industrial Monitoring
24/7 thermal monitoring for equipment and processes
Security & Surveillance
Detect thermal anomalies in any environment
Mobile Thermal Imaging
PT Series — Plug-in Thermal Imager for Phones
Compact plug-and-play thermal imager designed for mobile inspection, diagnostics, and real-time awareness. High sensitivity, low power consumption, and OTA support make it ideal for professional and industrial use.
PT Series Specifications
| Resolution | 640 × 512 |
| Pixel Size | 12 µm |
| NETD | ≤50 mK @ 25°C, F1.0 |
| Frame Rate | 25 Hz |
| Operating Temp | -20°C ~ +50°C |
| Power | <1W |
| Weight | <53 g |
| Dimensions | 27.5 × 27.5 × 46 mm |
| Supported System | Android 7.0+ |
| Pseudo-color | White Hot / Black Hot / Rainbow / Iron / Red Hot |
| SDK | Provided |
| Hot Tracking | Supported |
| Media Recording | Photo & video |
| OTA Update | Supported |
Pocket-Sized Power
At under 53g and just 27.5 x 27.5 x 46 mm, the PT Series plugs directly into your Android phone for instant thermal imaging anywhere.
Professional-Grade Sensitivity
With NETD ≤50 mK and 640 x 512 resolution, detect temperature differences as small as 0.05°C for reliable diagnostics.
Multiple Viewing Modes
Switch between White Hot, Black Hot, Rainbow, Iron, and Red Hot pseudo-color palettes to optimize visualization for any application.
SDK Included
Full SDK provided for custom app development. Build your own thermal imaging workflows and integrate with your existing mobile tools.
OTA Updates
Keep your imager firmware up to date with over-the-air updates. Always have the latest features and improvements.
Applications
Our thermal cameras serve a wide range of industries and use cases.
Electrical Inspection
Detect overheating connections, unbalanced loads, and faulty components before failures occur.
Mechanical Systems
Monitor bearings, motors, and mechanical equipment for early signs of wear and overheating.
Building Diagnostics
Identify insulation gaps, moisture intrusion, and HVAC issues with non-invasive thermal scanning.
R&D & Prototyping
Validate thermal designs, optimize heat dissipation, and verify product performance.
Ready to add thermal vision to your workflow?
Contact us for pricing, custom configurations, and SDK access for our thermal imaging cameras.
Get a Free Quote
